Adjusting Fixed Argon Nozzle

This article guides you step-by-step through the process of aligning the Argon Gas Nozzle

Tools needed:

  • Adjustable lab jack
  • Wire pin, 2" long,  0.020" or smaller diameter. 0.020" is preferred
  • Short crosshead screwdriver

  • Put the lab jack inside the chamber and adjust it into focus.
  • Slide the pin into the center of the gas nozzle. Note: You may need to remove the nozzle to do this.

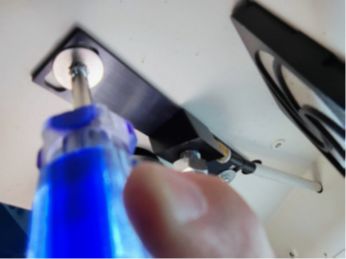

  • Loosen, but do not remove, the two crosshead screws holding the gas bracket to the ceiling of the welding chamber.

  • Looking through the scope, hold the nozzle and move it slightly forward. Adjust it so the end of the wire is in the cross-hairs

Note: It's okay if the bracket is slightly crooked on the chamber's ceiling.

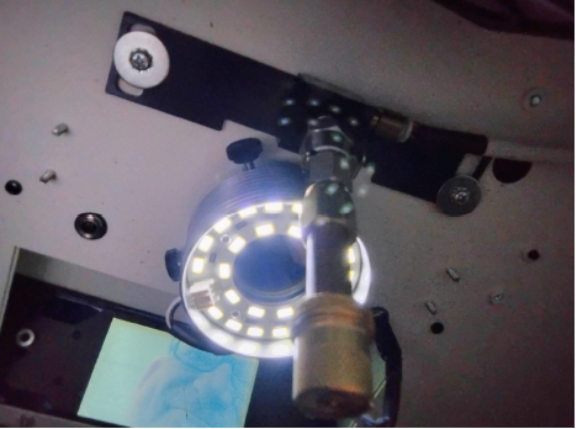

A close up of a machine Description automatically generated

  • Keeping the nozzle in place, tighten the two screws.

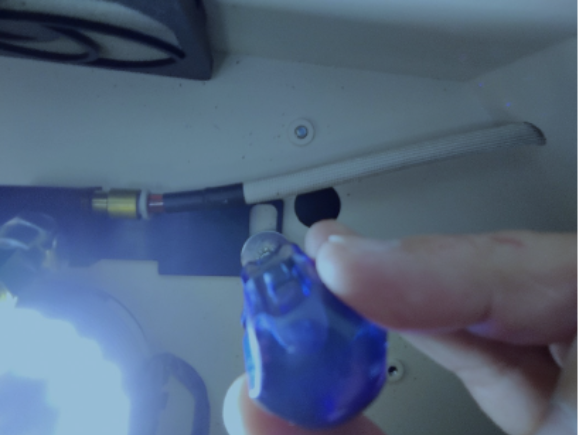

A person holding a blue object Description automatically generated

  • Check if the pin hasn't moved after tightening.
  • Remove the pin.
  • Check your gas regulator. It should be between 20 and 30 CFH.
  • Check the gas flow at the nozzle. The factory setting is three turns open from
  • Closed the gas valve near the joystick.
